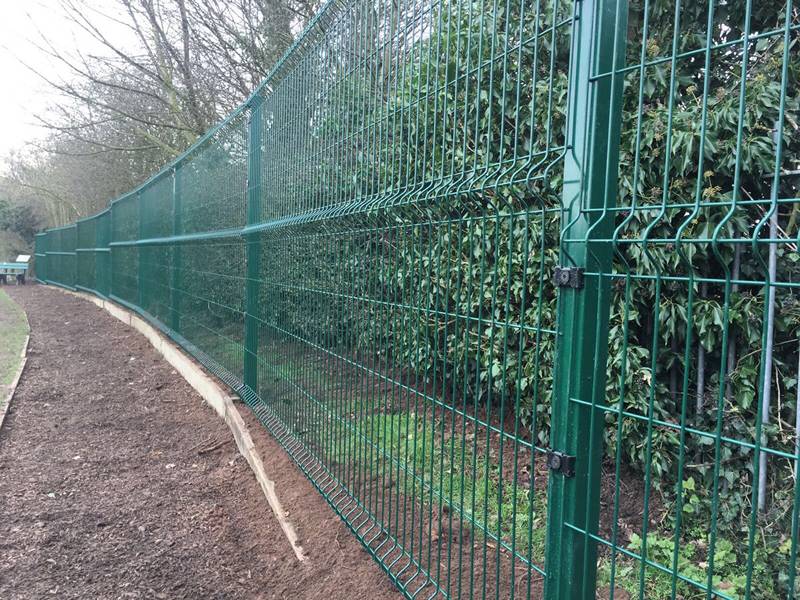

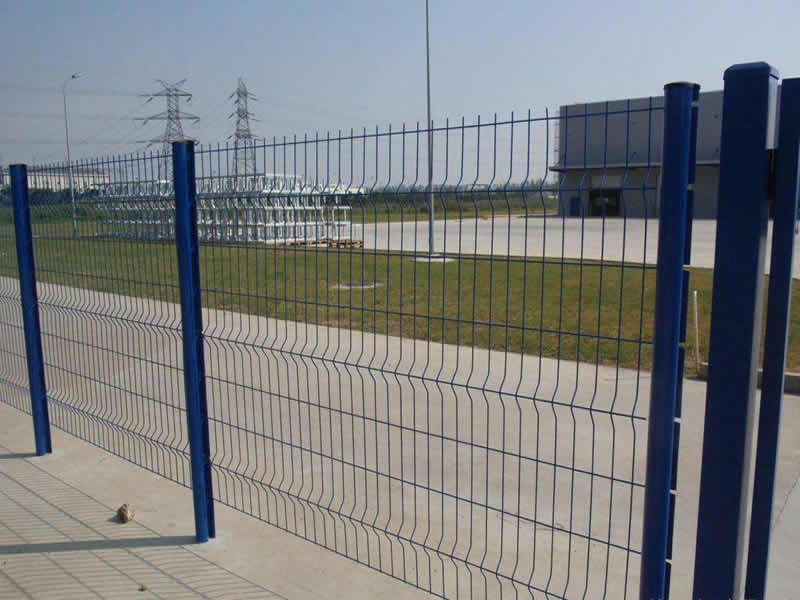

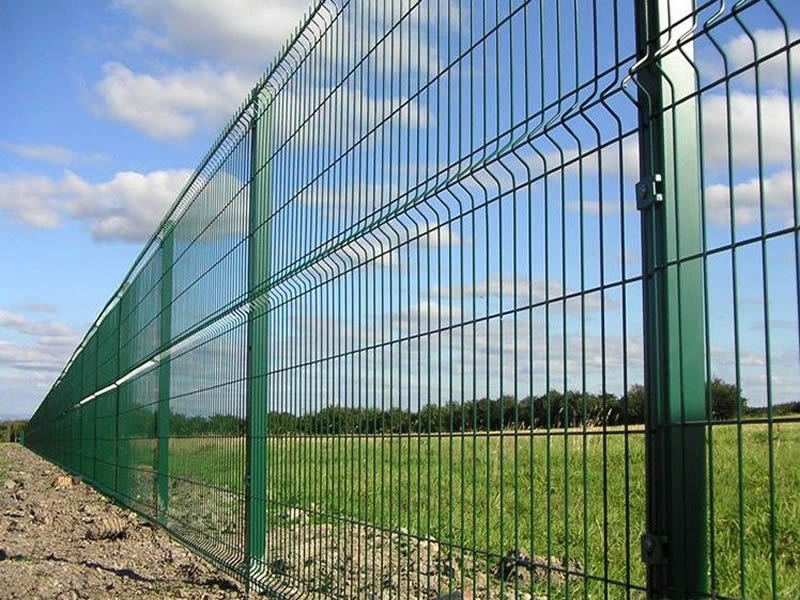

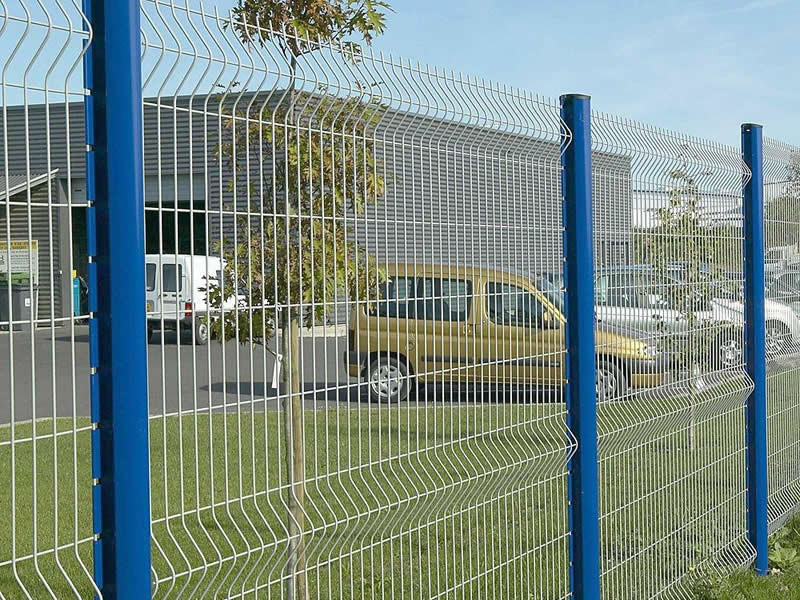

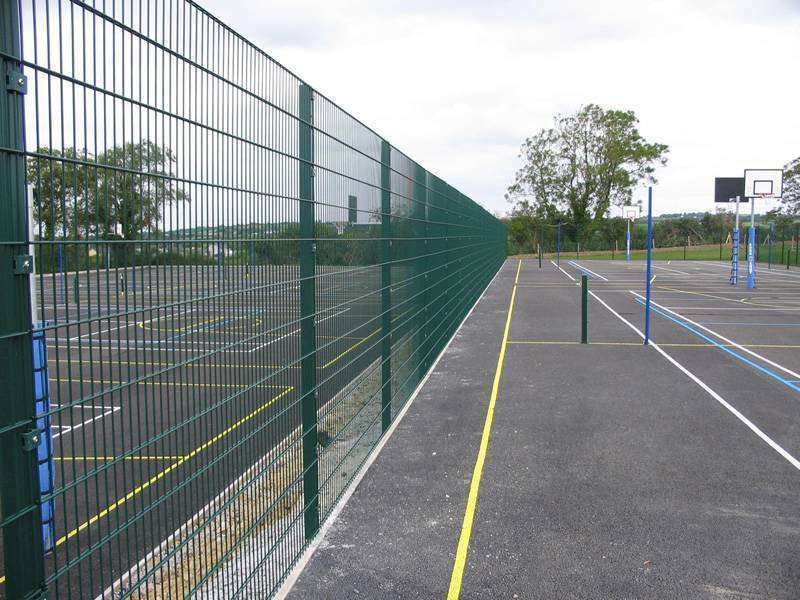

Welded Panel Fence

The Wire Mesh Fencing is a complete high quality fencing, which guarantees an extra long life at a low cost.






SPECIFICATIONS FOR THE FENCING PANEL

MESH SIZE

WIRE THICKNESS

COATING

HIGHT

LENGTH

FOLDS

WEIGHT

50mmx200mm

4.0mm/5.0mm
(before PVC coated is 4.0mm and after PVC coated is 5.0mm)

Galvanized and PVC coated

0.63m

2.00m

2

3.76kg

0.83m

2.00m

2

4.85kg

1.03m

2.00m

2

5.95kg

1.23m

2.00m

2

7.05kg

1.43m

2.00m

2

8.15kg

1.63m

2.50m

3

11.67kg

1.83m

2.50m

3

13.04kg

2.03m

2.50m

4

14.51kg

2.23m

2.50m

4

15.88kg

2.43m

2.50m

4

17.18kg

Note: 1. The opening can be 50mmx100mm,50mmx150mm or other size.
2. The wire thickness can be on the customer’s request.
3. For the finish coating ,we can do electric dipped galvanized and PVC coated ,hot dipped galvanized and PVC coated, PVC coated without galvanizing. The customer can also choose PVC painted finish treating.
4. The color of the PVC powder is available in all RAL colors
5. Regarding the height and length of the panel, customer’s special demand can be also considerable
6. The panels above are applicable to Type I, Type Ⅱand Type Ⅲ.


SPECIFICATIONS FOR THE POST



0.93m

1.13m

1.33m

1.53m

1.73m

2.13m

2.33m

2.53m

2.73m

2.93m

TYPEⅠ

50mmx70mm





















70mmx100mm





















TYPEⅡ

50mmx50mm

2.92kg

3.56kg

4.20kg

4.84kg

5.48kg

-------

-------

--------

-------

-------

60mmx60mm

3.48kg

4.22kg

4.98kg

5.76kg

6.57kg

8.11kg

8.93kg

9.64kg

10.42kg

11.17kg

TYPE Ⅲ

ф48mm

2.31kg

2.81kg

3.31kg

3.80kg

4.30kg

5.29kg

-------

-------

-------

-------

ф60mm

3.30kg

4.01kg

4.72kg

5.43kg

6.14kg

7.56kg

8.27kg

8.98kg

9.69kg

10.40lg

Note:1. The height of the posts are completely according to the height of the fencing panel above.
2. The thickness for TYPEⅠis 1.2mm;thickness for TYPEⅡ is 2.0mm;Thickness for TYPE Ⅲф48mm is 2.2mm,ф60mm is 2.5mm。Customer’s special demand is also considerable.
3. For the finish coating ,we can do electric dipped galvanized and PVC painted ,hot dipped galvanized and PVC painted, PVC painted without galvanizing.
4. The color of the PVC powder is available in all RAL colors.
5. Regarding the height of the post, if the height of post is less than 2 m ,there will be 0.3 m under the ground;
If the height of the post is more than 2 m ,there will be 0.5m under the ground. . We recommend the installation ways to be cement concrete.


Packing and Loading:
